Setting up Arduino (Windows 10)

Written By: Tim Hebert (and one other contributor)
  • Comments: 0
  • Favorites: 0

Difficulty

Easy

Steps

11

Time Required

Suggest a time??

Sections

1

Flags

1

Missing Images

Missing Images

This guide needs more images to properly convey the procedure being described.

  1. visit: https://www.arduino.cc/en/Main/Software
    Edit

  2. Donate if you wish, if not choose "Just Download"

    • Donate if you wish, if not choose "Just Download"

    Edit

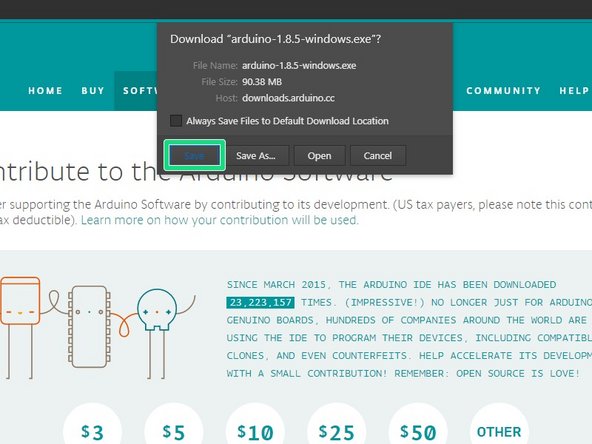

  3. allow your browser to save the file

    • allow your browser to save the file

    Edit

  4. Agree to EULA Include all check-boxes and click "Next" Default destination is usually the easiest for continuity of future examples.

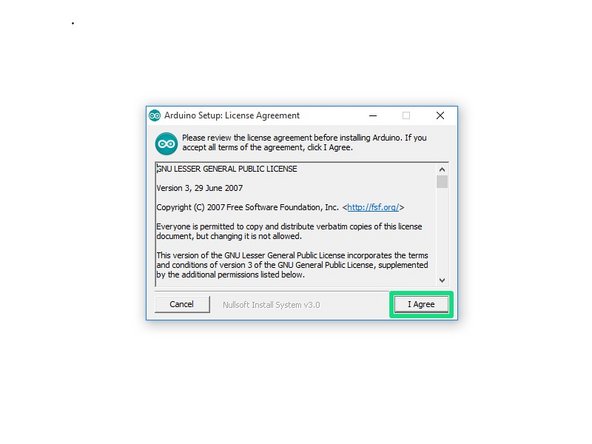

    • Agree to EULA

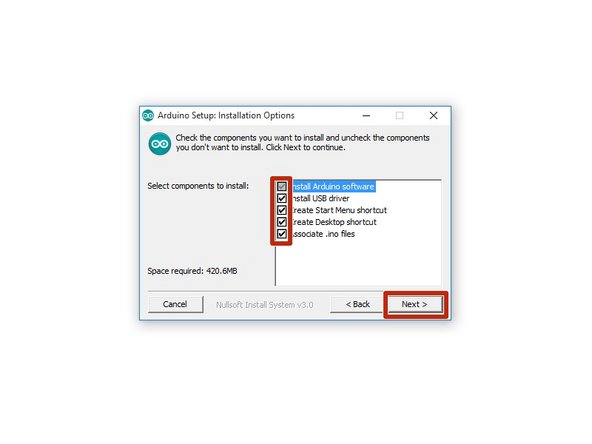

    • Include all check-boxes and click "Next"

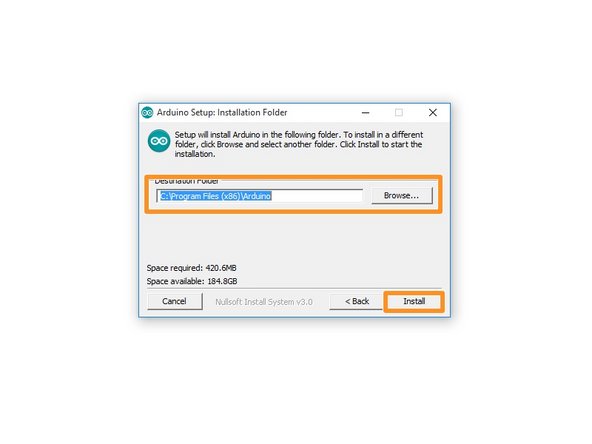

    • Default destination is usually the easiest for continuity of future examples.

    Edit

  5. Depending on your system's current configuration, the installer may ask you to install one or more USB or other COM port drivers. Select "Install"

    • Depending on your system's current configuration, the installer may ask you to install one or more USB or other COM port drivers. Select "Install"

    Edit

    • Plug your Arduino in

    • An Arduino UNO uses USB-B on the Arduino side and USB-A on the computer side

    Edit

  7. from the "Start" menu, type "device manager"

    • from the "Start" menu, type "device manager"

    • select the "device manager | Control panel" when it shows up

    • note: you can also browse directly to the device manager from the control panel

    Edit

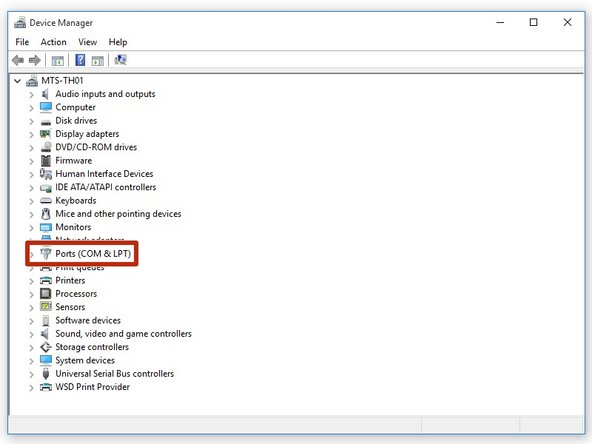

  8. select the "Ports (COM & LPT)" dropdown

    • select the "Ports (COM & LPT)" dropdown

    • note the device "arduino"

    Edit

  9. Search for Arduino in the search bar.

    • Search for Arduino in the search bar.

    • Click on the app icon [RED]

    Edit

    • Congratulations! You have sucessufully installed the Arduino, you are now on your way to start coding!

    Edit

    • But wait! There is more! It is not uncommon for an arduino board to be dead. Here are some telltale signs:

    • The board's chip set gets really hot when plugged in

    • The lights on the board do not turn on after being plugged in

    • It doesn't hurt to try another board if your program doesn't run properly

    • Try a different USB cable, or test the one you're using with a different device.

    • You circuit may also be incorrectly wired, try the board all by itself.
